Plasticade A-Frame 2002

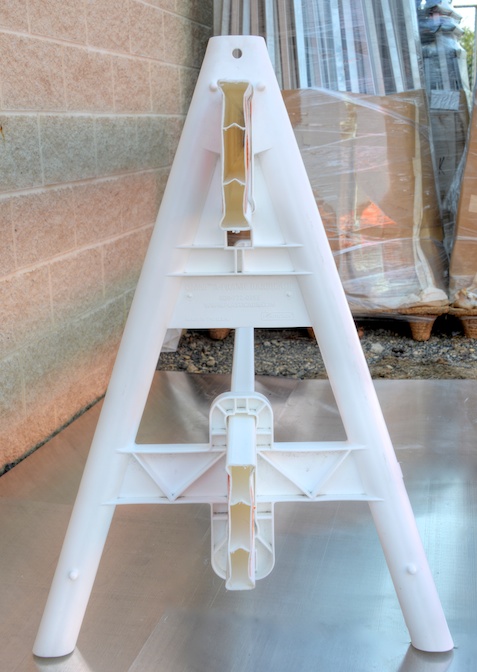

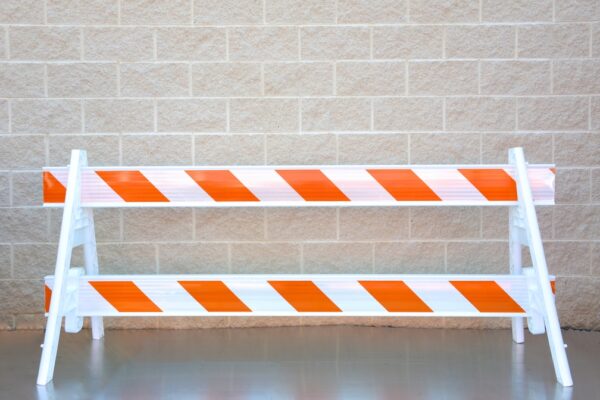

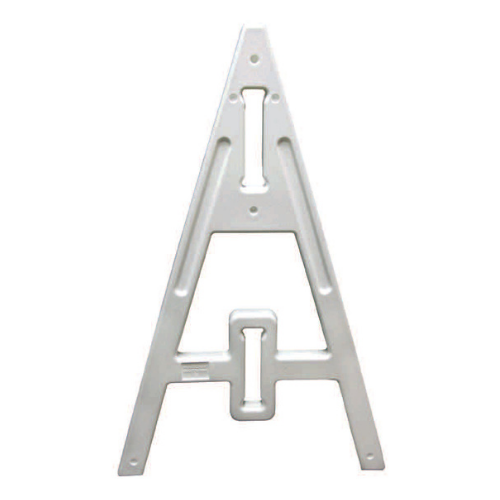

The A-Frame barricade has heavy duty molded polyethylene A-Frame legs with provisions to mount a barricade light and space for a 2″ x 8″ crossbar.

Specifications:

• Height of leg:  40″.
• Height to top of board:  36″ minimum.
• Leg spread:  30″.
• Crossbar pocket:  2″ x 8″ nominal.
• Approximate weight (2 legs):  12 lbs.
• Standard crossbar length:  2″ x 8″ x 8′.
• Optional crossbar lengths:  2″ x 8″ x 6′, 2″ x 8″ x 10′, 2″ x 8″ x 12′.
• Crossbar options:  Plastic Engineer Grade reflective,  plastic High Intensity reflective, or plastic Diamond Grade Cubed .
• Resistant to impact.
• Manufactured of high density polyethylenes structurally foamed, molded in white color and UV stabilizers.
• Company name and/or logo stencilled on panel for an additional charge.
• Conform to section 6C of the Federal MUTCD.
