TraffiCalm DFB 2.0 10” P Series

PN: M75-D3024-000X

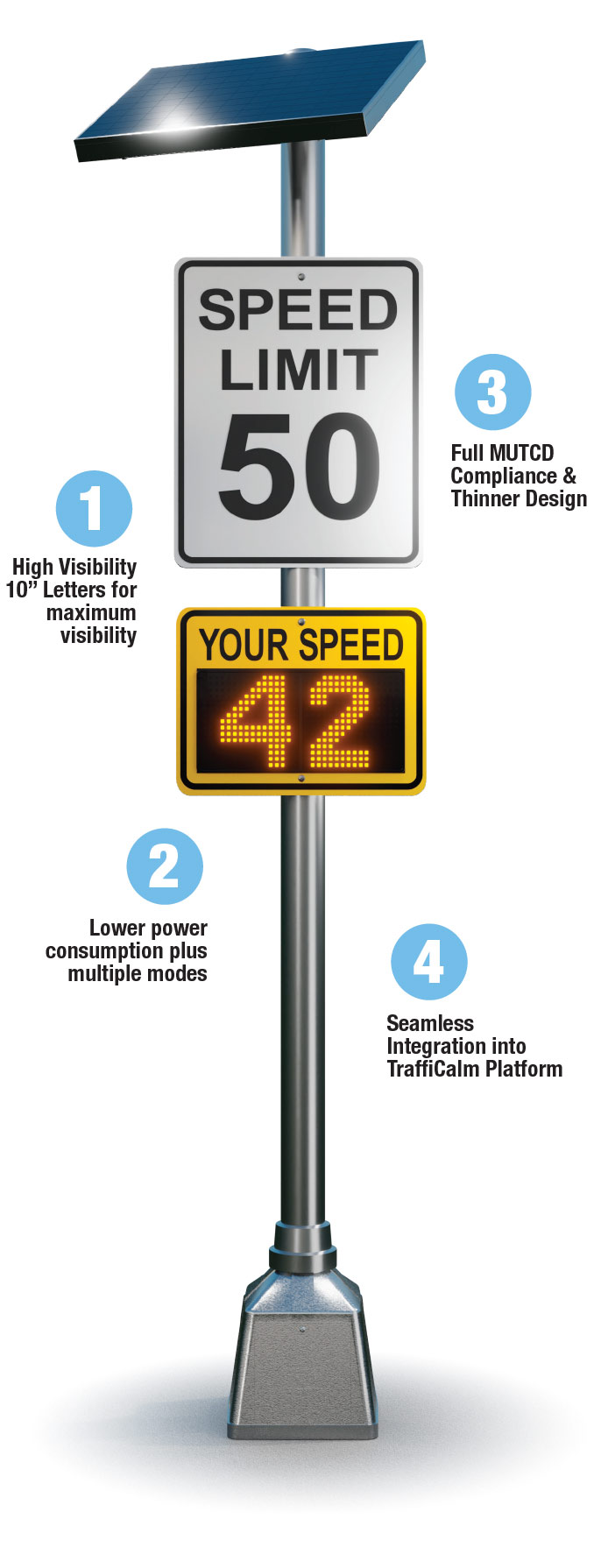

WHAT’S NEW

Engineered from the ground up for

modern roadway deployments.

• Next-generation low-profile design — thinner and lighter for easier installation and reduced wind loading
• Reduced power consumption compared to previous

iQ Series platforms

• Optimized for solar installations to support autonomous roadside operation
• Engineered to standard highway sign formats for consistent MUTCD-based installations
• Retains proven features including Stealth Mode, traffic data collection, and real-time speed feedback

SMART & CONNECTED

One platform. One workflow. No retraining required.

• TC Speed Connect™ (Web)
• Full programming and configuration using the same interface as the iQ Series — agencies only need one software platform.
• Integrated Traffic Data Collection
• Continuous speed monitoring supports engineering studies, compliance reporting, and long-term analysis.

COMPLIANCE & STANDARDS

Built for regulatory confidence.

• Fully MUTCD Compliant for Driver Feedback Sign applications
• Designed to standard highway sign dimensions and formats in accordance with MUTCD guidance
• FCC Part 15 Compliant
• Build America, Buy America Compliant
• ISO 9001 Certified Manufacturing
• Informational device — not an enforcement system

PROVEN SAFETY FEATURES

More than a display. A behavior-change system.

• Stealth Mode – Collects speed data with the display off
• Traffic Data Logging – Supports before-and-after studies and ongoing reporting
• Dynamic Feedback – Real-time driver speed display encourages voluntary compliance
• Static Speed Mode – Displays posted speed when required

MODELS & SIGN DIMENSIONS

• W13-20 — Vehicle Speed Feedback (Full-Size)

Model Numbers:

• M75-D3024-0002: Fluorescent Yellow-Green
• M75-D3024-0004: Yellow

POWER REQUIREMENTS

Operating Voltage

• 12VDC continuous power required

Power System Types

• Solar-powered systems (panel + battery + charge control)
• Externally AC powered systems (AC-DC converter)
• Solar/AC Sold seperately*

OPERATING MODES & ESTIMATED DAILY ENERGY USE

Mode Definitions

• Standby: display off, radar off
• Stealth: display off, radar on (data logging)
• Radar w/ Feedback: displays driver speed, radar on (data logging)

10” P Series Power Consumption (Estimated Daily Usage)

Equinox: Based on 12-hr daylight, 50% traffic load

Winter Solstice: Based on 8-hr daylight, 50% traffic load

RADAR SENSOR

• Doppler Radar
• K-Band (24.15 GHz) License-free (FCC part 15 compliant)
• Max radar detection range up to 1000 ft. (304M) depending upon vehicle size, speed of approach, and configuration

CONSTRUCTION

• Sign: Aluminum 5052-H32 0.125” – Not painted
• Enclosure : 1/8” ABS – Black

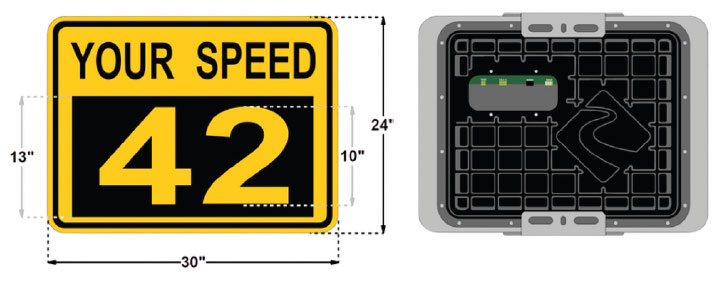

• 10” character height | 24 in sign height | 30 in sign width
• Front face sheeting: 3M™ Diamond Grade™ high visibility prismatic retroreflective sheeting
• NEMA 3R

DISPLAY

• Full Matrix Electronic Light Emitting Diode (LED) Display
• Speed display features 10” high electronic numbers. Will display MPH
• KPH, Minimum 1 MPH (1.6 KPH) in 1 MPH/1.6 KPH increments,
• Maximum 99 MPH/159.3 KPH
• LEDS: Amber in color, 100,000-hour life, 30° viewing angle, AlInGaP technology YOUR SPEED Legend: FHWA “Highway Gothic 4.00” C

MOUNTING & MECHANICAL

Standard Mounting Hardware (Included with sign hardware set)

• Aluminum mounting bracket built into sign
• Flared Leg Brackets (Qty: 2)
• SS Bolts, Nuts, Washers, and Lock Washers for 2.5-3.5” PSST
• Mounting hardware for poles such as U-bolts and/or banding is not provided. Follow local agency requirements for securing.

SOFTWARE & CONNECTIVITY

• RS-232 and Bluetooth Class 1 or 2 adaptors (capabilities; V1.0,
• V1.2, V2.0, V2.1,+ Enhanced Data Rate, EDR)
• TC Speed Connect™ (Web): Full system programming and configuration using the same interface as iQ Series platforms
• System Health Data: battery voltage, internal temperature, ambient light lux, display function status
• Speed Data: date stamp, time stamp, vehicle count, minimum speed, maximum speed, 10 speed bins, average speed, 25th percentile speed, 50th percentile speed, 85th percentile speed
• Schedule can be programmed up to 1 year in advance
• License Free, Local configuration, scheduling and data reports

OPTIONAL COMPONENTS

• External flashing devices
• Supplemental mounting hardware
• External radar speed detection module (M75-SA300-RDR0)

WARRANTY

• Warranty: 3-year limited (battery: 1-year)
• Support: Unlimited U.S.-based factory technical support
