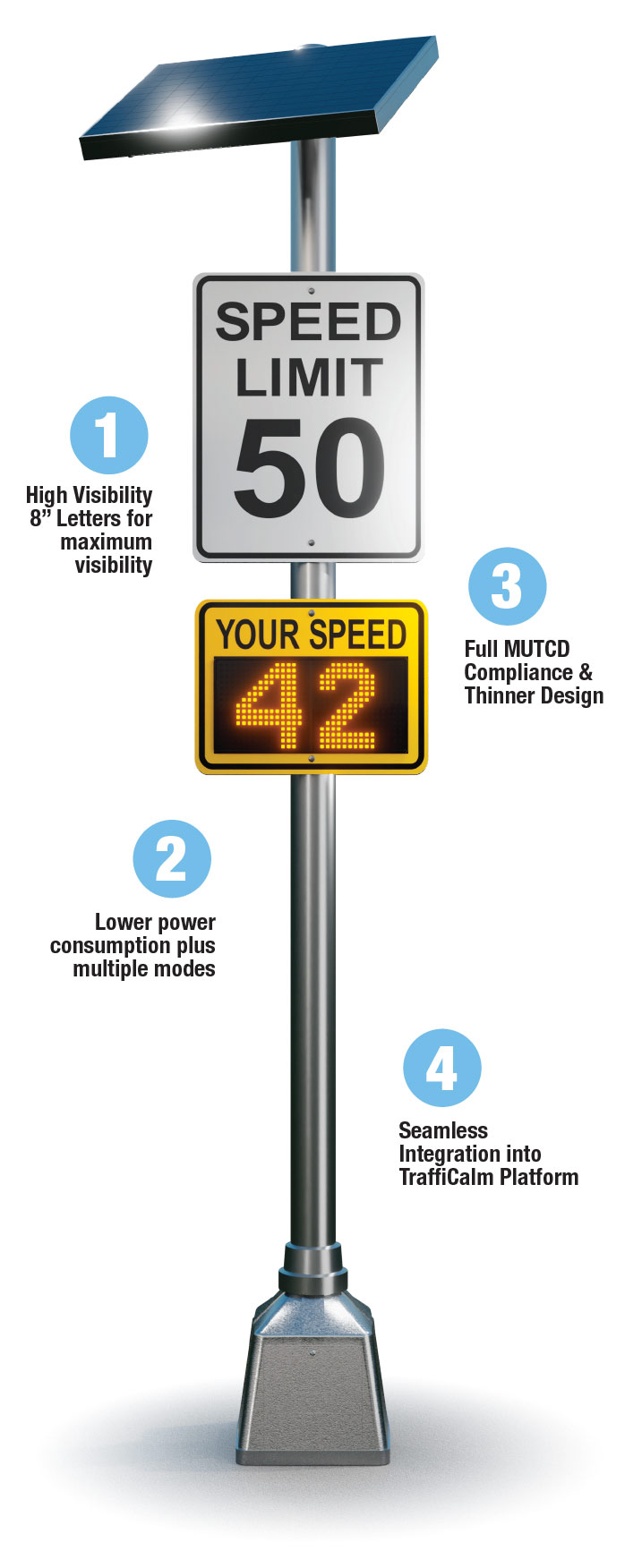

TraffiCalm DFB 2.0 8” P Series

PN: M75-D2418-000X

WHAT’S NEW

Engineered from the ground up for

modern roadway deployments.

• Next-generation low-profile design — thinner and lighter

for easier installation and reduced wind loading

• Reduced power consumption compared to previous

iQ Series platforms

• Optimized for solar installations to support

autonomous roadside operation

• Engineered to standard highway sign formats

for consistent MUTCD-based installations

• Retains proven features including Stealth Mode, traffic

data collection, and real-time speed feedback

SMART & CONNECTED

One platform. One workflow. No retraining required.

• TC Speed Connect™ (Web)

• Full programming and configuration using the same

interface as the iQ Series — agencies only need one

software platform.

• Integrated Traffic Data Collection

• Continuous speed monitoring supports engineering

studies, compliance reporting, and long-term analysis.

COMPLIANCE & STANDARDS

Built for regulatory confidence.

• Fully MUTCD Compliant for Driver Feedback Sign applications

• Designed to standard highway sign dimensions and formats in

accordance with MUTCD guidance

• FCC Part 15 Compliant

• Build America, Buy America Compliant

• ISO 9001 Certified Manufacturing

• Informational device — not an enforcement system

PROVEN SAFETY FEATURES

More than a display. A behavior-change system.

• Stealth Mode – Collects speed data with the display off

• Traffic Data Logging – Supports before-and-after

studies and ongoing reporting

• Dynamic Feedback – Real-time driver speed

display encourages voluntary compliance

• Static Speed Mode – Displays posted speed when required

MODELS & SIGN DIMENSIONS

• W13-20aP — Vehicle Speed Feedback (Full-Size)

Model Numbers:

• M75-D2418-0002: Fluorescent Yellow-Green

• M75-D2418-0004: Yellow

POWER REQUIREMENTS

Operating Voltage

• 12VDC continuous power required

Power System Types

• Solar-powered systems (panel + battery + charge control)

• Externally AC powered systems (AC-DC converter)

• Solar/AC Sold seperately*

OPERATING MODES & ESTIMATED DAILY ENERGY USE

Mode Definitions

• Standby: display off, radar off

• Stealth: display off, radar on (data logging)

• Radar w/ Feedback: displays driver speed, radar on (data logging)

8” P Series Power Consumption (Estimated Daily Usage)

Equinox: Based on 12-hr daylight, 50% traffic load

Winter Solstice: Based on 8-hr daylight, 50% traffic load

RADAR SENSOR

• Doppler Radar

• K-Band (24.15 GHz) License-free (FCC part 15 compliant)

• Max radar detection range up to 1000 ft. (304M) depending

upon vehicle size, speed of approach, and configuration

CONSTRUCTION

• Sign: Aluminum 5052-H32 0.125” – Not painted

• Enclosure : 1/8” ABS – Black

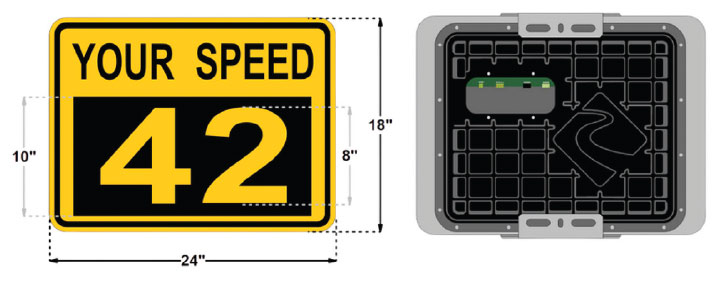

• 8” character height | 18 in sign height | 24 in sign width

• Front face sheeting: 3M™ Diamond Grade™ high visibility

prismatic retroreflective sheeting

n NEMA 3R

DISPLAY

• Full Matrix Electronic Light Emitting Diode (LED) Display

• Speed display features 8” high electronic numbers. Will display MPH

or KPH, Minimum 1 MPH (1.6 KPH) in 1 MPH/1.6 KPH increments,

Maximum 99 MPH/159.3 KPH

• LEDS: Amber in color, 100,000-hour life, 30° viewing angle, AlInGaP

technology YOUR SPEED Legend: FHWA “Highway Gothic 3.00” C

MOUNTING & MECHANICAL

Standard Mounting Hardware (Included with sign hardware set)

• Aluminum mounting bracket built into sign

• Flared Leg Brackets (Qty: 2)

• SS Bolts, Nuts, Washers, and Lock Washers for 2.5-3.5” PSST

Mounting hardware for poles such as U-bolts and/or banding is not provided. Follow local agency requirements for securing.

SOFTWARE & CONNECTIVITY

• RS-232 and Bluetooth Class 1 or 2 adaptors (capabilities; V1.0,

V1.2, V2.0, V2.1,+ Enhanced Data Rate, EDR)

• TC Speed Connect™ (Web): Full system programming and

configuration using the same interface as iQ Series platforms

• System Health Data: battery voltage, internal temperature, ambient

light lux, display function status

• Speed Data: date stamp, time stamp, vehicle count, minimum

speed, maximum speed, 10 speed bins, average speed, 25th

percentile speed, 50th percentile speed, 85th percentile speed

• Schedule can be programmed up to 1 year in advance

• License Free, Local configuration, scheduling and data reports

OPTIONAL COMPONENTS

• External flashing devices

• Supplemental mounting hardware

• External radar speed detection module (M75-SA300-RDR0)

WARRANTY

• Warranty: 3-year limited (battery: 1-year)

• Support: Unlimited U.S.-based factory technical support
